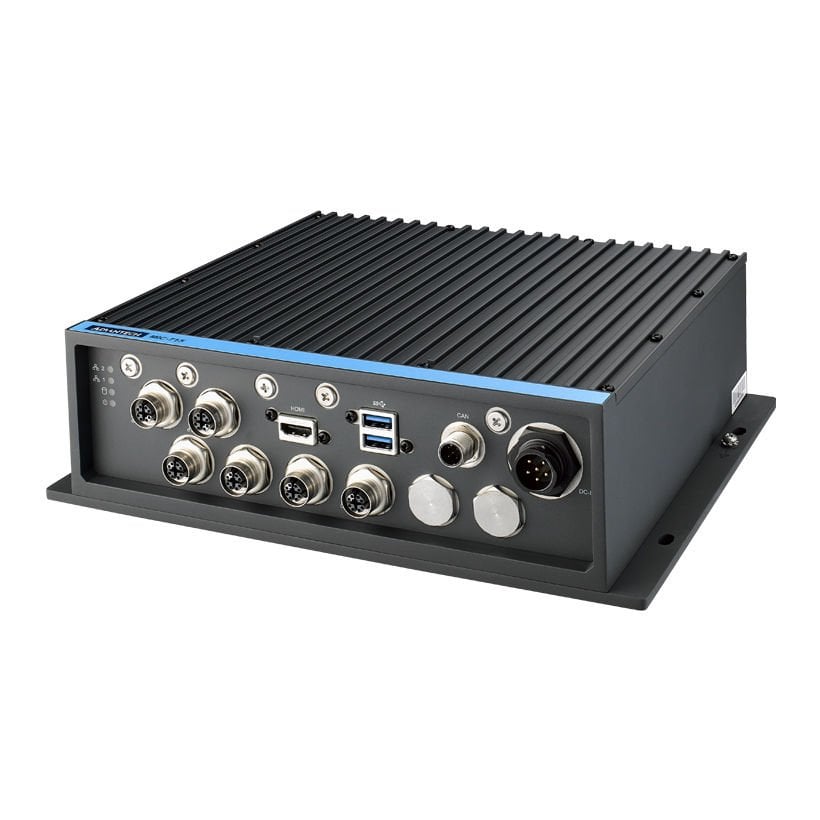

Advantech MIC-715 Ruggedized In-Vehicle AI Fanless System Based on NVIDIA® Jetson Orin™ NX

Advantech MIC-715-OX Ruggedized In-Vehicle AI Fanless System Based on NVIDIA® Jetson Orin™ NX
Processor System:
CPU 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
GPU 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Memory 16GB LPDDR5
I/O:
Ethernet 6 x 10/100/1000 Mbps (4 x PoE support, IEEE 802.3af) in M12 X-coded, 8-pin female connector
Display HDMI (Max. resolution 3840 x 2160 @ 60Hz)
USB External: 2 x USB 3.0
CAN Bus 2 x CAN bus
OTG USB 1 x Micro USB
Expansion:
Mini PCIe 2 x mPCIe (signal: PCIe + USB)
SIM 2 x Nano SIM slot (M.2 3052 & Mini PCIe2 slot)
M.2 1 x M.2 3052 (B-Key, signal: PCIe + USB)
Storage:
M.2 1 x M.2 2280 M-Key (NVMe, PCIe x1)
POWER:
Mode M16, 6-pin male Input power 12/24VDC (12-6A) with ignition *Note1 if 24V DC supplied change sw1 dip switch
Environment
Operating Temperature -20 ~ 60 °C with 0.7 m/s airflow (Max-N ARM mode)
Operating Humidity 95% @ 40 °C (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock 10G/11ms
BSP Jetpack Above 5.1
Certifications CB/UL/CE/FCC/CCC (No RED certification)

Optional
1700025503-01 M Series Waterproof Cable 8P/RJ45-8P8C 100cm (M12 to RJ-45) 98R27150000 M2 3052 / Mini PCIe module thermal kit
